A New Epoch is Beginning

With years of development, DMP-A6 Master Edition has reformed traditional streamers by solving pain points across the industry, it implies the beginning of a new epoch. DMP-A6 Master Edition is an all-in-one player, with quad-core processor and large memory, tailored for lossless music playback. Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS9038Q2M professional DAC, fully balanced differential circuit and professional audio tuning, all of them contribute to the superior performance of DMP-A6 Master Edition. Unprecedented experienceis offered to music lovers with music streaming services, local music mamagement, mobile APP and exclusive control system.

Self-developed EOS Audio Engine
EOS (Eversolo original sampling-rate audio engine) is developed by Eversolo engineers, with the support of outputting original sampling rate, that is, audio plyback completely bypasses the Android SRC restriction, support the Direct audio output of third-party apps (Apple Music hi-res Direct output.

Master Recording Playback and Decoding
Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf, .dff, .iso, .dst) stereo/multi-channel and MQA etc.

Large LCD Touchscreen for Better User Interaction

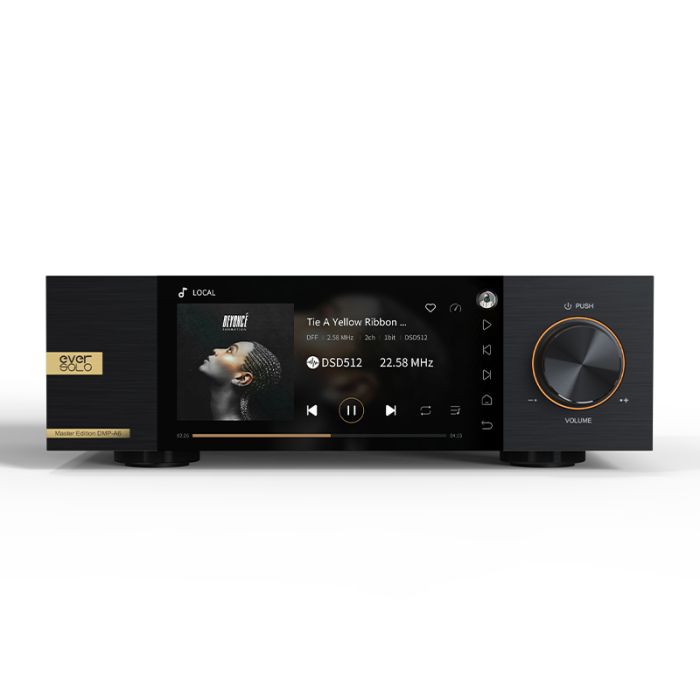

The front panel of DMP-A6 Master Edition is embedded with the Master Edition exclusive nameplate and a golden knob aperture. Equipped with a large 6" LCD high-definition touchscreen, it has a professional streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps, it runs smoothly as a mobile phone.

DOH Chips for HDMI DSD Multichannel
As multi-channel streamer, DMP-A6 Master Edition adopts DOH processing chips for HSMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides regenerated high-precision independent clock for HDMI. So that it can be used as a digital turntable.

Internal High-speed M.2 SSD Slot
A M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 4TB. Faster, stable and no noise, it is the key for local high-quality music playback.

Low Ripple High Performance Power Module
The DMP-A6 Master Edition is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. Choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.

Rich Inputs and Output Ports
DMP-A6 Master Edition can be used as a digital turntable to connect with various high-end decoding devices by digital output ports including HDMI, USB, Optical and Coaxial. As a decoder, DMP-A6 Master Edition can connect with audio source equipment like PC and mobile devices by Coaxial, Optical, Type-C inputs . XLR and RCA outputs are to connect with active speakers or power amplifiers.

3rd Generation XMOS 316 Audio Solution
With 3rd generation XMOS 316 audio processor, DMP-A6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB port supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial ports support DSD 64 (DoP), PCM192@24Bit.

Low Jitter Dual Clock Processing
Low-jitter high-precision dual clocks are designed for DMP-A6. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1KHz and 48KHz multiplied sampling, effectively reducing jitter, and achieving more precise audio decoding.

Fully Balanced Preamp Circuit
DMP-A6 Master Edition analogue circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity, improves channel separation by eliminating shared loops for stronger and more consistent signal quality.

2x ES 9038Q2M DAC Decoding
2x ES 90382M are used to establish Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32bit, and MOA hard decoding.

Handpicked Audio Components
Sound quality of DMP-A6 Master Edition analogue output is monitor-level. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA etc. The goal is to provide more authentic and pure sound performance.

Professional Tuning and Reliable Audio Indicators
The DMP-A6 Master Edition has been expertly tuned, and the circuit has been thoughtflluy constructed, thanks to the wealth of knowledge from engineers at Eversolo who have been actively involved in the audio industry for many years. THD+N is -120dB (0.00009%), SNR is 128dB and dynamic range is 128dB. The leading indicators provide a strong base for high sound quality.

Qualcomm QCC5125 Module
The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMP-A6 is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for simple music playback and CD-quality sound. DMP-A6 Master Edition includes MQA (Master Quality Authenticated) technology, which enables you to play back MA audio files and streams, delivering the sound of the original master recording.

Music Services at Your Fingertips
The DMP-A6 Master Edition incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music.

Wireless Music Streaming
Roon Ready, Tidal Connect, DLNA are supported by the DMP-A6 Master Edition. High quality music can be streamed online to mobile devices in the same LAN, make it simpler to enjoy online music services and easier to play back music at home.

Roon Ready
Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that Eversolo network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and Eversolo deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.

Music Library for Local Playback
Eversolo Music Library not only provides excellent local music playback performance Bert also greatly improves user interest in music management. It can addAmusic files from a s local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE file and so on; songs are displayed in categories based on genres, albums, artists and sample rates; making a list of your favourite songs and searching for them by album, artist, or song initials.

Multiple Network Protocols
DMP-A6 Master Edition not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/3, and UPnP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.

Effective Media Management System
The DMP-A6 Master Edition is your reliable companion in media management. With its powerful system, you can seamlessly handle editing tasks for both your local hard drive and network storage, like copying, past-ing, cutting, and deleting. The configurable USB OTG port adds a personal touch to connectivity, effortlessly bridging your PC and the DMP-A6 Master Edition through a USB cable. This means hassle-free local file copying and management. Take advantage of the internal SMB sharing function, a feature that transforms your connected mobile device or internal SSD into a hub for sharing media files. Sharing with other media playback devices, computers, or mobile devices in the LAN becomes not just a possibility but a seamless experience. Make the DMP-A6 your personalized network storage solution.

Smart Control App
Android/iPhone/iPad control apps are developed for the DMP-A6 Master Edition. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. Screen mirroring is also supported by installing third-party APP.

Digital Filters Meet Different Personal Preferences
The DAC setting of the DMP-A6 provides seven types of digital filters, with different modes corresponding to different sound characteristics, which can be switched according to personal preferences.

Personalised VU Meters
A wide range of personalised dynamic VU meters are tailored for audiophiles. A wonderful interactive experience is offered with real-time full-format music display, including DSD.

Aluminium Chassis Unique Appearance
The DMP-A6 Master Edition is made from aviation aluminium and features a CNC machined body for a solid construction. The brushed panel and frosted anodised body are a great combination of classic and modern elements to suit the preferences of experts.

Hi-Res Audio
The DMP-A6 Master Edition is Hi-Res Audio certified by JAS, with superior sound quality.
